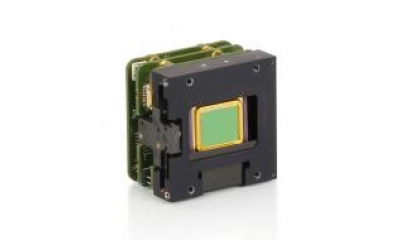

Xenics的XTM 640是一個非常緊湊和通用的熱紅外相機模塊，具有獨特的圖像質量和穩定性，適用于廣泛的OEM應用。
OEM 模組提供板載圖像處理和全快門控制，保證為您獲取無與倫比的均勻和清晰的熱紅外圖像。
您可以輕松地將我們的XTM 640集成到您的系統中，并提供多種接口選項?？梢噪S時使用軟件工具來滿足您的定制需求。
小像素間距17μm，允許更長時間的檢測。 識別和辨別(DRI)值是重要的安全應用。
優點和特點：
Low power
Low power consumption for easy integration, also in portable systems
High resolution
Easy connectivity
Small size, 17 μm pixel pitch
50 Hz frame rate world wide
設計用于使用：
UAV / UGV
Gimbal
Night vision
Thermal sights
Border security
Fire fighting
Driver assistance
Police surveillance
Search & Rescue (SAR)
Electro optical payloads
 Compatible with a variety of framegrabbers Several compatible frame grabbers for CameraLink interface are available (Euresys Grablink Full, NI 1433 and Imperx Framelink Express VCE-CLEX01). |  GigE Vision standard compatibility The Gigabit Ethernet interface is compatible to the GigE Vision standard |
 Video output Analog video output available |  SWaP (Small size, weight and power ) Small volume, low weight and low power consumption for demanding applications |
 Trigger External trigger for signal synchronization |  Windowing mode Imaging in a reduced window of interest for increased frame rates |
 16 bit image Digitization: The module uses a 16 bit ADC |  High sensitivity Low noise equivalent temperature difference (NETD) |
 High resolution 640x480 pixel resolution |  Day & Night Vision The camera can operate under daylight or nighttime conditions |
| Mechanical specifications | XTM 640 GigE | XTM 640 CL | XTM 640 PAL/NTSC |
| Dimensions (width x height x length) - excluding lens (approximately) | 45 x 45 x 63 mm | 45 x 45 x 45 mm | 45 x 45 x 47 mm |
| Weight (excluding lens) | 125 gr | 84 gr | 99 gr |
| Optical interface | M42 or M34 x 0.75 | ||
| Connector GigE | RJ-45 | NA | NA? |
| Connector CameraLink | NA | Standard SDR | NA |
| Connector power | Hirose HR10-7R-SA(73) | ||
| Connector trigger | SMA | ||
| Connector analog | NA | NA? | BNC |
| Connector RS232 | NA | NA? | RJ-12 |
| Environmental & power specifications | XTM 640 GigE | XTM 640 CL | XTM 640 PAL/NTSC |
| Ambient operating temperature range | -40oC to 60oC | ||
| Storage temperature range | -45°C to 85°C | ||
| Power consumption | 4.5 W | 2 W | |
| Power supply | DC 12 V | ||
| Electro-optical specifications | XTM 640 GigE | XTM 640 CL | XTM 640 PAL/NTSC |
| Image format | 640 (w) x 480 (h) pixels | ||
| Pixel pitch | 17 μm | ||
| Detector type | a-Si microbolometer | ||
| Integration type | Rolling shutter | ||
| Active area and diagonal | 10.88 mm x 8.16 mm (13.6 mm diagonal) | ||
| Detector NETD (Noise Equivalent Temperature Difference) | <55 mK (at 30 Hz, 300 K, F/1) | ||
| Spectral range | 8 μm to 14 μm | ||
| Pixel operability | >99% (excluding 3 peripheral lines and columns) | ||
| Maximum frame rate (full frame) | 50 Hz or 9 Hz | 25 Hz (PAL), 30 Hz or 9 Hz (NTSC) | |
| Integration time range | 1 μs - 80 μs | ||
| Region of interest | Yes | ||
| Min region size | 160 x 120 pixels | ||
| Analog-to-Digital (ADC) | 16 bits | ||
| Command and control | GigE Vision | CameraLink | RS232 (XSP) |
| Digital output format | 16 bit GigE Vision | 16 bit base CameraLink | |
| Trigger | in or out via SMA (configurable) (not for 9Hz) | in or out via SMA or CL-CC1 (configurable) (not for 9Hz) | in or out via SMA (configurable) (not for 9Hz) |
