德國NET（New Electronic Technology）是一家集軟硬件設計于一體的高科技公司，主要面向醫療和工業領域提供高級的攝像頭解決方案，除了硬件設計還深入研究一系列實際應用場景的圖像采集和圖像處理算法，經過二十年的發展已經積累了豐富的設計經驗和技術專利。除此之外NET公司還為用戶提供了可視化的軟件開發環境——SynView軟件開發套件，集成了豐富的圖像處理開發資源，如OpenCV、H
德國NET（New Electronic Technology）是一家集軟硬件設計于一體的高科技公司，主要面向醫療和工業領域提供高級的攝像頭解決方案，除了硬件設計還深入研究一系列實際應用場景的圖像采集和圖像處理算法，經過二十年的發展已經積累了豐富的設計經驗和技術專利。除此之外NET公司還為用戶提供了可視化的軟件開發環境——SynView軟件開發套件，集成了豐富的圖像處理開發資源，如OpenCV、HALCON算法庫、LabView插件等，大大加快了開發人員的開發工作的復雜度，加快了項目進度

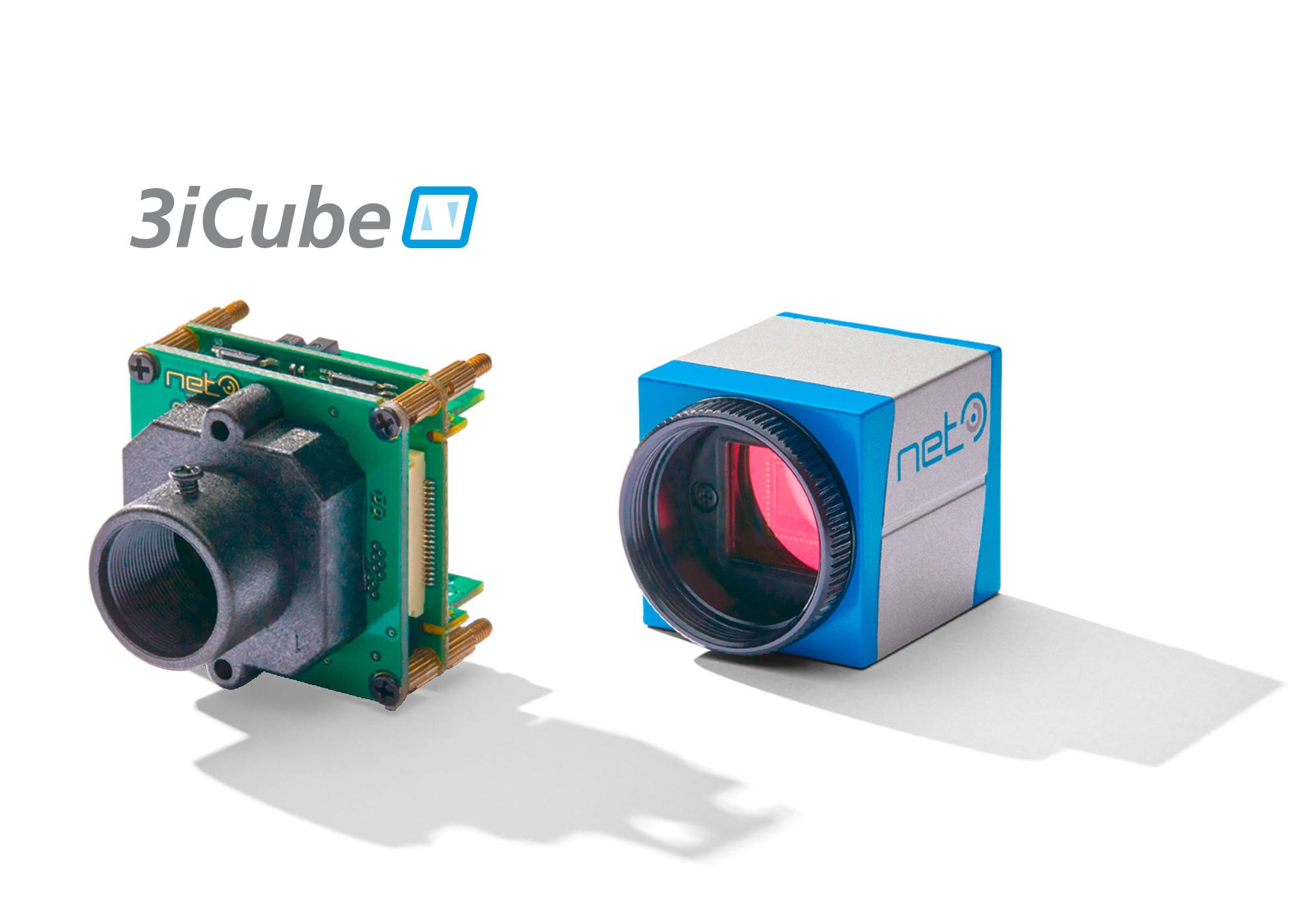

3iCube USB 3.0系列相機提供了廣泛的不同型號，以滿足用戶的個人需求。我們?yōu)榭蛻籼峁┝诉m合每個應用的USB 3.0接口。3iCube相機有與行業標準一致的健壯外殼版本，可以集成到客戶應用程序的董事會級版本，以及根據要求定制的版本。
這些接口提供了同樣多的選擇自由。帶有USB 3.0接口的3iCube帶有一個網絡驅動程序。與USB3視覺界面一起，客戶也得到了網絡開發的GenICam / gentl兼容的軟件界面SynView。3iCube還提供了用戶友好的UVC (USB視頻類)接口。它完全適合于工業使用，運行在標準操作系統Windows和Linux下，并可根據要求運行在Macin osh上。
3iCube可以通過驅動程序、FPGA或NETs SDK / API SynView中的圖像增強功能進行單獨優化。無論您選擇什么:網統一處理的方法幫助您捕獲完美的圖像!
工業相機型號 | IC1044BU | IC1044CU | IC1130BU | IC1130CU | IC4133BU | IC4133CU | IC2234BU | IC2234CU |
板在相機型號 | BC1044BU | BC1044CU | BC1130BU | BC1130CU | BC4133BU | BC4133CU | BC2234BU | BC2234CU |
分辨率 | 752 x 480 / WVGA | 1280 x 1024 / SXGA | 1280 x 1024 / SXGA | 1920 x 1200 / WQUXGA | ||||
芯片 | CMOS | |||||||
圖像芯片 | MT9V032 | MT9M001 | MT9M001 | EV76C560 | EV76C661 | |||
芯片尺寸 | 1/3“ | 1/3“ | 1/1.8“ | 1/1.2“ | ||||
像素大小[μm] | 6.00 x 6.00 | 5.20 x 5.20 | 3.60 x 3.60 | 5.30 x 5.30 | ||||
幀速[fps] | 86 | 24 | 60 | 37 | ||||
快門方式 | global | rolling | global; rolling; global reset | global | ||||
快門速度 | 0.024 -763 ms | 0.062 -745 ms | 0.02 -394 ms | 0.039 -633 ms | 0.031 - 1030 ms | |||
動態范圍[dB] | 55 | 68 | 71 | 62 | 63 | |||
鏡頭接口 | C- / CS-mount | |||||||
掃描系統 | progressiv | |||||||
觸發 | external, software | |||||||
接口 | USB 3.0:iControl SDK USB3 Vision:SynView SDK optional: UVC (USB Video Class Device) | |||||||
相機尺寸 | BC:28 x 28 x 22 / IC: 30 x30 x 31.5 mm | |||||||
USB連接 | lockable micro USB3.0 B-lockable | |||||||
重量 | BC:13g / IC:42g | |||||||
I/O連接器 | 8 pin -lockable | |||||||
功耗(W) | <1.5 (model specific: < 1.0) | |||||||
工業相機型號 | IC4203BU | IC4203CU | IC1300CU | IC1500BU | IC1500CU | IC11000BU | IC11000CU |
板在相機型號 | BC4203BU | BC4203CU | BC1300CU | BC1500BU | BC1500CU | BC11000BU | BC11000CU |
分辨率Z (H x V) [px] | 1600 x 1200 / UXGA | 2048 x 1536 / QXGA | 2592 x 1944 / QSXGA | 3840 x 2748 / WQUXGA | |||
芯片 | CMOS | ||||||
圖像芯片 | EV76C570 | MT9M001 | MT9P031 | MT9P001 | MT9J003 | ||
芯片尺寸 | 1/1.8“ | 1/2“ | 1/2.5“ | 1/2.3“ | |||
像素大小[μm] | 4.50 x 4.50 | 3.20 x 3.20 | 2.20 x 2.20 | 1.67 x 1.67 | |||
幀速[fps] | 47 | 12 | 14 | 7.5 | |||
快門方式 | global; rolling; global reset | rolling | rolling with global reset | rolling with global reset | |||
快門速度 | 0.031 - 1030 ms | 0.056 ms - 50 s | 0.085 ms -89 s | 0.074 ms -77 s | 0.146 ms - 135 s | ||
動態范圍[dB] | 62 | 61 | 70 | 65 | |||
鏡頭接口 | C- / CS-mount | ||||||
掃描系統 | progressiv | ||||||
觸發 | external, software | ||||||
接口 | USB 3.0:iControl SDK USB3 Vision:SynView SDK optional: UVC (USB Video Class Device) | ||||||
相機尺寸 | BC:28 x 28 x 22 / IC: 30 x30 x 31.5 mm | ||||||
USB連接 | lockable micro USB3.0 B-lockable | ||||||
重量 | BC:13g / IC:42g | ||||||
I/O連接器 | 8 pin -lockable | ||||||
功耗（W) | <1.5 (model specific: < 1.0) | ||||||
The 3iCube USB 3.0 camera series offers a wide range of different models to meet the individual needs of users. Customers are provided with an appropriately equipped model featuring the USB 3.0 interface most suitable for each application. 3iCube cameras come in robust housing versions consistent with industry standards, board-level versions that can be integrated in o the customer application and, on request, customized versions.
The interfaces offer just as much freedom of choice. 3iCube with USB 3.0 interface comes with a NET driver. Together with the USB3 vision interface, customers also get the NET-developed GenICam / GenTL-compatible software interface SynView. 3iCube is also available with the user-friendly UVC (USB Video Class) interface. It is fully suitable for industrial use and runs under the standard operating systems Windows and Linux and, on request, Macin osh.
3iCube can be individually optimized by means of the image enhancement feature in the driver, FPGA or NETs SDK / API SynView. Whatever you opt for: NETs unified processing approach helps you capture the perfect image!

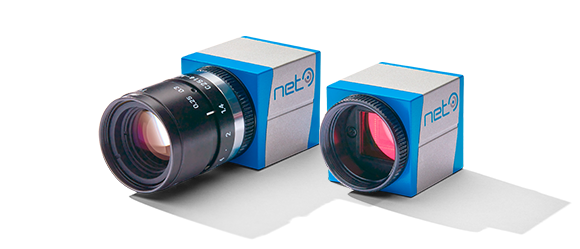

3iCube cameras can be flexibly configured to meet the requirements of the specific customer application. With its industrial-standard aluminum housing, 3iCube is suitable for use in a wide range of possible applications, for example in the factory automation sector. A compact board-level version is available for device integration. Either C or S mount lenses can be fitted. NET also supports its customers with application-specific adaptations. On request, we can also offer pre-focused lenses, customized driver adaptations and other alterations.
3iCube allows users to choose which USB 3.0 interface they want to use. Choose between our tried-and-tested SDK, which is also used in NETs USB 2.0 cameras, or models without camera-specific drivers. The 3iCube vision models use a generic interface, which enables direct integration in o vision architectures together with GigE vision cameras. 3iCube cameras with a UVC interface are fully functional without a driver. We have added a trigger feature for industrial applications to the UVC protocol.
The wide range of image sensors and features helps you to choose the best possible product. In configuring the vision solution, we offer our customers our expertise in video processing to help capture the perfect image for the application. We can also develop additional algorithms for an extended range of functions according to individual customer requirements.
Legend: R: rolling / G: global / GR: global reset / RGR: rolling mit global reset / GRGR: global; rolling; global reset
