PLW20 高通量自動孔板裝載系統 對于先進的高通量細胞成像而言，該系統同時為用戶提供了精確度和速度。PLW20可以自動加載20塊孔板，而線性載物臺則提供了出色的精度和快速移動的無與倫比的組合。Lumen 200可為各種熒光團提供高質量的熒光性能。Brightfield LED則為其他成像技術提供了出色的照明。濾光片、光闌、載物臺、明場和對焦電機均通過ProScan III?進行控制，從
PLW20 高通量自動孔板裝載系統 ---典型應用：FISH，免疫組化
對于先進的高通量細胞成像而言，該系統同時為用戶提供了精確度和速度。PLW20可以自動加載20塊孔板，而線性載物臺則提供了出色的精度和快速移動的無與倫比的組合。Lumen 200可為各種熒光團提供高質量的熒光性能。Brightfield LED則為其他成像技術提供了出色的照明。濾光片、光闌、載物臺、明場和對焦電機均通過ProScan III?進行控制，從而實現了先進的成像技術和長時間的全自動實驗。
核心系統 可選配件 |  |

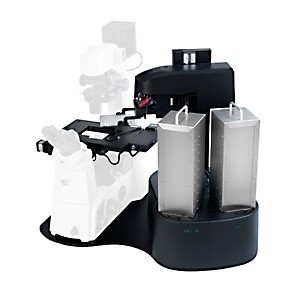

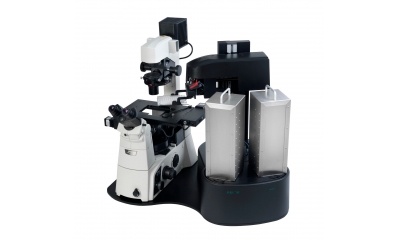

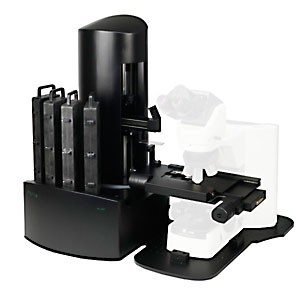

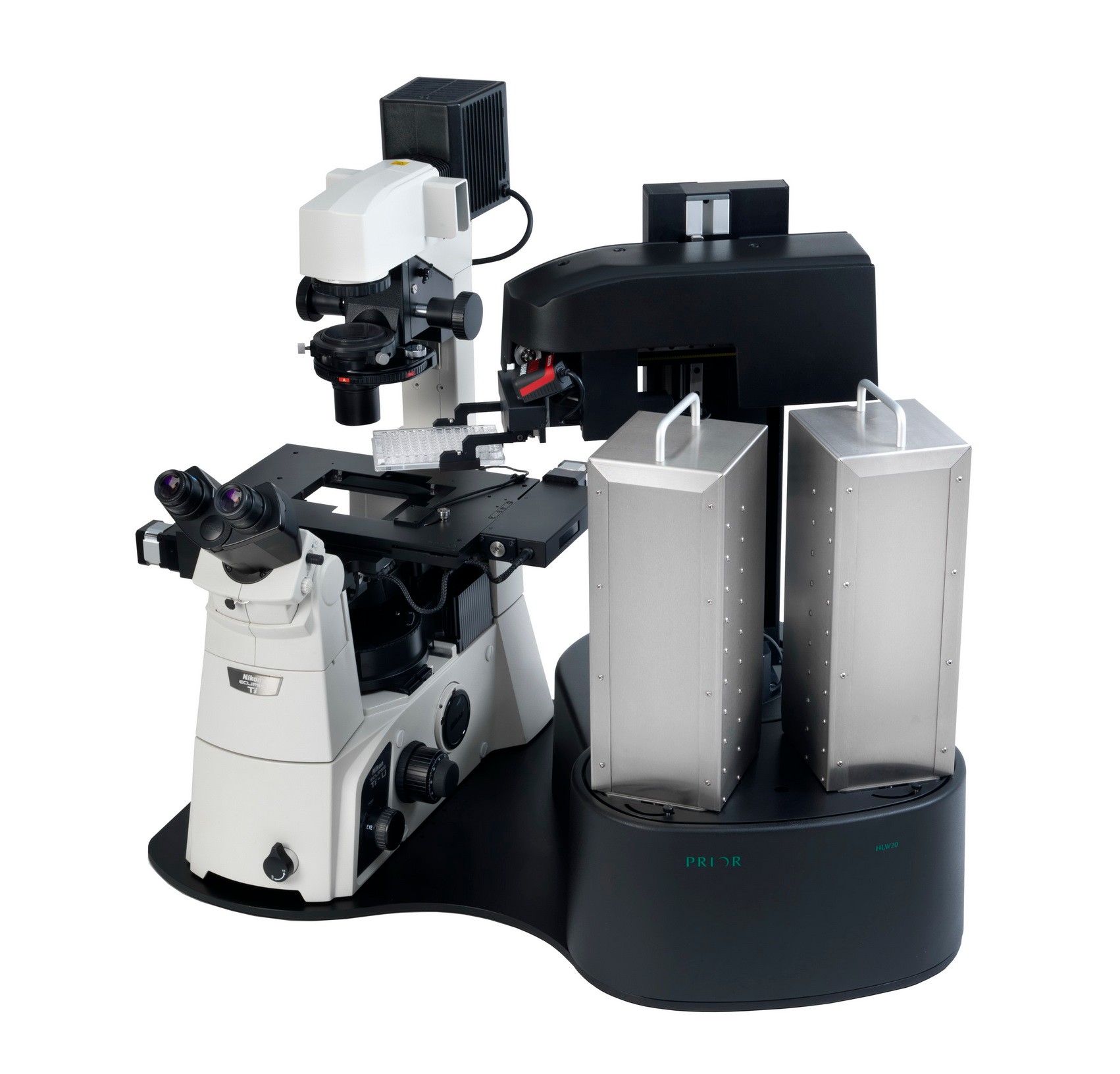

Adaptable to most modern inverted microscopes, the simple, rugged and compact PLW20 provides three independently controlled and encoded axes for rotational, vertical and horizontal movement. Combine the PLW20 with a Prior ProScan stage for your inverted microscope and you have a system designed specifically for high content screening applications with a capacity of 20 well plates (two racks of 10 each). The two stainless steel racks provided with each loader accommodate covered and uncovered well plates up to 19mm in height. Sensors monitor the presence of well plate racks so that the system can be programmed to respond when racks are changed in the middle of a run. Additionally, the DLL provided with the PLW20 is compatible with both ProScan II and ProScan III stage and focus controllers.
| Capacity: | 20 well plates – in 2 racks of 10 plates each |
| Rack Sensor: | Racks can be swapped while unit is running |
| Well Plate Detection: | Racks are scanned for plates present. Plates are barcode read prior to loading for random access |
| Mishandling detection: | Mishandling detection is built in o both the gripper arm and stage insrt |
| Barcode Readers: | Optional 2D reader available |
| Vibration: | Loader is stationary between operations, eliminating vibration during imaging operations |
| Communications: | USB |
| Scanning Stage Compatibility: | Compatible with ProScan H117 inverted stages (please call) |
| Footprint: | Compact unit occupies only 0.47m2 of bench space |
| Dimensions: | 84cm (W) x 55cm (D) x 66cm (H) |
| Input Voltage: | 100 – 240V AC |
| Regulatory Compliance: | Fully CE Compliant |
